Setup in the Administration menu, or click the Setup dialog launch icon
in the Database menu. Click then on Predefined Fields in the left window of the CIMCO NC-Base Configuration dialog. The following dialog appears:Use this dialog to specify predefined values for the database fields.
To open the Predefined Fields dialog, select Setup in the Administration menu, or click the Setup dialog launch icon in the Database menu. Click then on Predefined Fields in the left window of the CIMCO NC-Base Configuration dialog. The following dialog appears:
 |
|

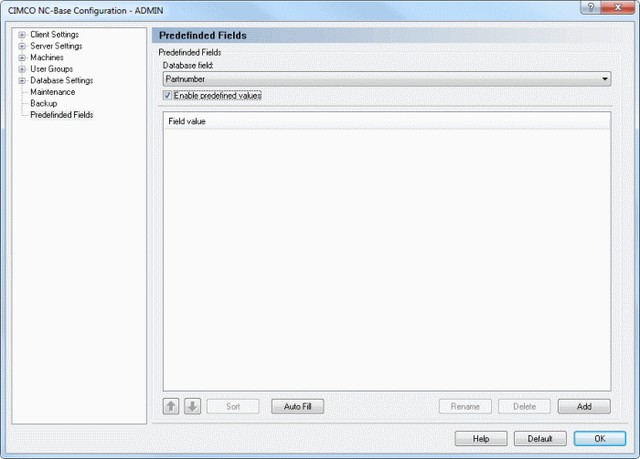

The Predefined Fields dialog. |
Select from the list, the database field for which you wish to set up the predefined field values.
Check this field to specify predefined values for the selected database field.
This field shows a list of all predefined values for the selected database field.
Use these buttons to move the selected value up or down the list.
Use this button to sort the predefined values in numerical or alphabetical order.
Click this button to use all the values currently in the database as predefined values.
Click this button to rename the selected entry. The following window appears:
 |
|
Rename field value. |
Assign a new name to the field value and click OK. If you want to exit without any changes taking effect, click Cancel.
Click this button to delete the selected field value.
Use this button to add a new entry to the predefined values. The following window appears:
 |
|
Add a new field value. |
Enter the value and click OK, or click Cancel to cancel the operation.
