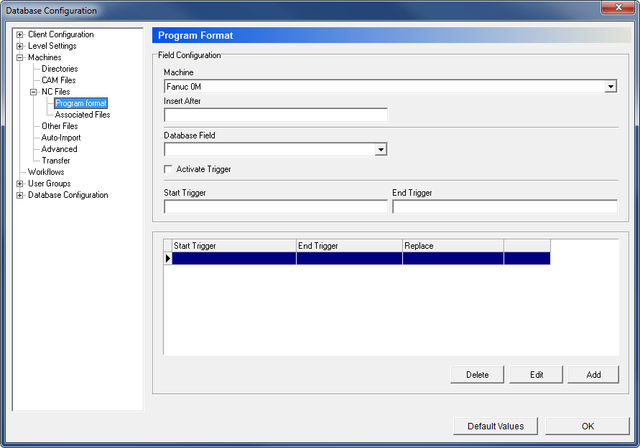

The Program Format dialog. |
Use the following dialog to define the program format for the selected machine.
|
|
The Program Format dialog. |
This field shows a drop-down list of the machine groups stored in the database. Select a machine group from the list to edit its program format settings.
Use this field to specify the line in the NC file after which the contents of the selected database field should be inserted.
Select from the list the database field, the contents of which should be inserted.
Check this option to activate the trigger specified in the fields Start Trigger/End Trigger below.
Use this field to specify the start trigger.
Use this field to specify the end trigger.
This field shows a table with rules for replacement.
Click this button to delete the highlighted rule.
Click this button to change the highlighted rule.
Click this button to add a new replacement rule. The following dialog appears:
 |
|
Add a new rule. |
Fill in the corresponding fields to define the replacement, and click OK to close the window.
