Database Server

Use the following cinfiguration dialog to set up the database server.

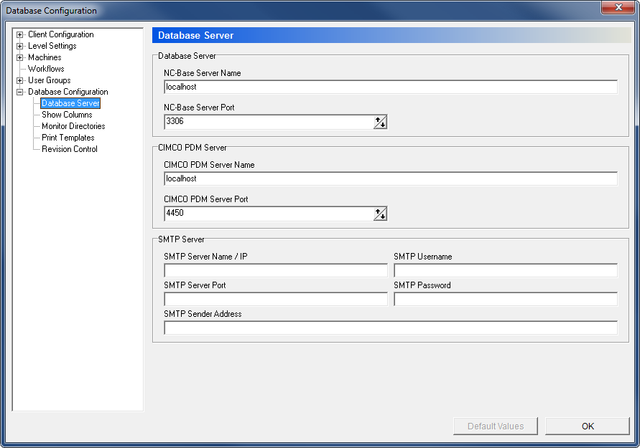

The Database Server dialog.

Database Server

NC-Base Server Name

Use this field to enter the name or address of the computer where NC-Base database server is installed. The server name can be specified either as the IP address or host name.

If the database server runs on this computer, you can just enter 'localhost'.

NC-Base Server Port

Use this field to enter the port used by the NC-Base Server.

Normally, this port should not be changed.

CIMCO PDM Server

CIMCO PDM Server Name

Use this field to enter the name or address of the computer where CIMCO PDM server is installed. The server name can be specified either as the IP address or host name.

If the PDM server runs on this computer, you can just enter 'localhost'.

CIMCO PDM Server Port

Use this field to enter the port used by the CIMCO PDM Server.

Normally, this port should not be changed.

SMTP Server

SMTP Server Name / IP

Use this field to enter the name or address of the computer where the SMTP server is installed. The server name can be specified either as the IP address or host name.

If the SMTP server runs on this computer, you can just enter 'localhost'.

SMTP Server Port

Use this field to enter the port used by the SMTP Server.

SMTP Username

Use this field to enter the user name to log on to the SMTP mail server.

SMTP Password

Use this field to specify the password for the mail server.

SMTP Sender Address

Use this field to enter the mail address for the outgoing messages.
