This section describes the Toolpath function in the Backplot menu. This is the representation of the current file relative to the toolpath in the simulation.
![]() |
After selecting a view, you can restart the graphical simulation of toolpath. It is possible to change to a different view during the simulation. |
![]() |
The Toolpath menu. |
Show/hide the paths of the tool.
Click the down arrow under this function to activate or deactivate toolpath options.
![]() |
Show/hide toolpaths. |
Show toolpath from start until current position.

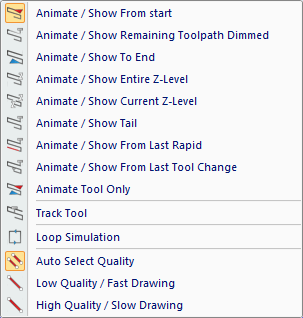

Click on the down arrow to open a drop-down menu, from which you can select options and additional functions for toolpath simulation.
![]() |
Options for toolpath simulation. |
