Find

This section describes the search for data through the file.

The Find menu.

Find / Ctrl+F

In the appearing dialog box, you can specify a text string and search for it through the CNC program. You can choose one of the defined tool operations instead of a text string.

Search dialog.

Find Previous / Shift+F3

Finds the previous occurrence of the specified search string in the CNC program.

Find Next / F3

Finds the next occurrence of the specified search string in the CNC program.

Replace / Ctrl+H

Replaces a specified string in the CNC program with another string.

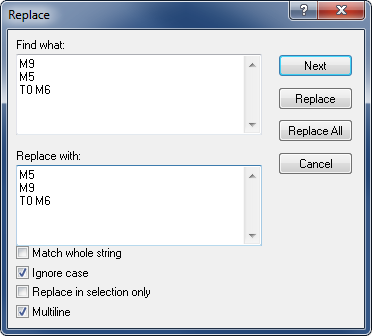

Replace dialog with option Multiline enabled.

Go to Line/Block Number / Ctrl+J

Locate line or block number in current window.

Next Tool Change

Goes to next tool change.

Previous Tool Change

Goes to previous tool change.
