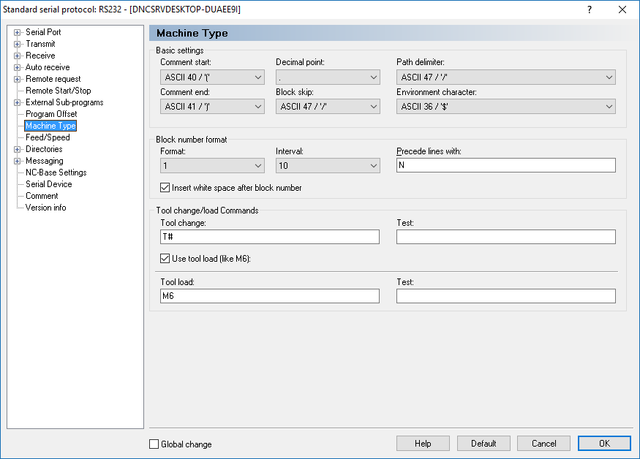

Machine Type

Comment start

Use this field to specify the character used to start a comment.

Comment end

Use this field to specify the character used to end a comment.

Decimal point

Use this field to specify the decimal separator.

Block skip

Use this field to specify the block skip character.

Path delimiter

Use this field to specify the character used as path delimiter in auto receive and remote request, that contains path information.

Environment character

Use this field to specify the character used as environment character in auto receive and remote request, that contains environment variables. I.e. if you want to specify $DATA as part of the path in a remote request, but want to use '%' as environment character, change this field to '%'.

Format

Use this field to specify the block number format.

Interval

Use this field to specify the interval between block numbers.

Precede lines with

Use this field to specify one or more characters that should be inserted before the block number.

Insert white space after block number

Check this field to insert a space after the block number.

Tool change

Use this field to specify the tool change command.

Use this field to specify the tool change command.

You can specify one or more letters followed by one or more # characters.

Example 1: T# matches T followed by one or more digits.

Example 2: T###### matches T followed by exactly six digits

Test

Use this field to test the tool change command.

Use tool load (like M6)

Check this field if the machine uses a 'M6' style command to activate a tool change. You must specify the format of the tool activate command below.

Tool load

Use this field to specify the tool load command.

Use this field to specify the tool load command.

If you specify M6, combinations like M06 are also accepted.

Test

Use this field to test the tool load command.
